Polyethylene/Reinforced LLDPE
DURA*SKRIM® J25DT1 and J30DT1
DURA*SKRIM® J25DT1 and J30DT1 are unique textured scrim reinforced geomembranes manufactured using high strength virgin grade polyethylene resins. DURA*SKRIM® J25DT1 and J30DT1 are reinforced with a tri-directional scrim reinforcement to maximize tear and puncture resistance. DURA*SKRIM® J25DT1 and J30DT1 are manufactured utilizing a cast extrusion process to achieve a consistent friction surface with uniform asperity heights. Raven’s exclusive GeoGrip™ Technology consists of durable random spike pattern and bidirectional bars for uniform stabilization.
Dura*Skrim®k36BT, k40BT & k45BT
DURA*SKRIM® K36BT, K40BT and K45BT are unique textured scrim reinforced cast geomembranes manufactured using high strength virgin grade polyethylene resins. DURA*SKRIM® textured K-Series is reinforced with a dense scrim reinforcement to maximize tear and puncture resistance. Both the single and double side textured K-Series are manufactured utilizing a cast extrusion process to achieve a consistent friction surface with uniform asperity heights. Raven’s exclusive GeoGrip™ Technology consists of durable random spikes and bidirectional bars for uniform stabilization and support.
DURA*SKRIM® textured K-Series combines both the exceptional performance characteristics of our smooth K-Series with the integrated GeoGrip™ surface texture providing a highly versatile geomembrane for use in many applications.
Dura*Skrim®k30B, k36B & k45B
Product Description
DURA*SKRIM® K30B, K36B and K45B are linear low density polyethylene geomembranes reinforced with a heavy dense scrim reinforcement. In addition to excellent dimensional stability the K-Series reinforcement provides unmatched tear and tensile strength. DURA*SKRIM® K-Series membranes are formulated with thermal and UV stabilizers to assure a long service life.
Product UseDURA*SKRIM® K30B, K36B and K45B are used in applications that require exceptional outdoor life and demand high tear strength and resistance to thermal expansion. DURA*SKRIM® K30B, K36B and K45B are manufactured from a very chemical-resistant, Linear Low Density Polyethylene with excellent cold crack performance.Size & PackagingDURA*SKRIM® K30B, K36B and K45B are available in a variety of widths and lengths to meet the project requirements.
Large diameter mill rolls are available to assure an efficient seaming process. Factory welded panels are accordion folded and tightly rolled on a heavy-duty core for ease of handling and time saving installation.
Dura*Skrim®8BB, 8WB, 12BB & 12WB
Dura*Skrim®8BB, 8WB, 12BB & 12WB
Product Description

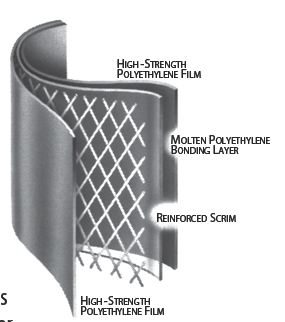

DURA*SKRIM® 8BB, 8WB, 12BB and 12WB consist of two sheets of high-strength virgin polyethylene film laminated together with a third layer of molten polyethylene. The white outer layer (DURA*SKRIM 8WB and 12WB) contains UV inhibitors and thermal stabilizers and the black outer layer(s) contains carbon black to enhance outdoor life. The white outer layer is also designed to reduce heat build up and condensation. A heavy scrim reinforcement placed between these plies greatly enhances tear resistance and increases service life. DURA*SKRIM’s heavy-duty diamond reinforcement responds to tears immediately by surrounding and stopping the tear.
Dura*Skrim® R8BV, R12BV
Product Description
DURA*SKRIM 8BV and 12BV consist of two sheets of high-strength virgin polyethylene film laminated together with a third layer of molten polyethylene. The black outer layers contain carbon black to enhance outdoor life. A heavy scrim reinforcement placed between these plies greatly enhances tear resistance and increases service life. DURA*SKRIM’s heavy-duty diamond reinforcement responds to tears immediately by surrounding and stopping the tear.
